Product Details
- Size: 122
- Place of Origin: Jining city,China
- Brand Name: YangJia
- Model Number: yangjia
- Weight: 9000.000 kg
Application & Advantages

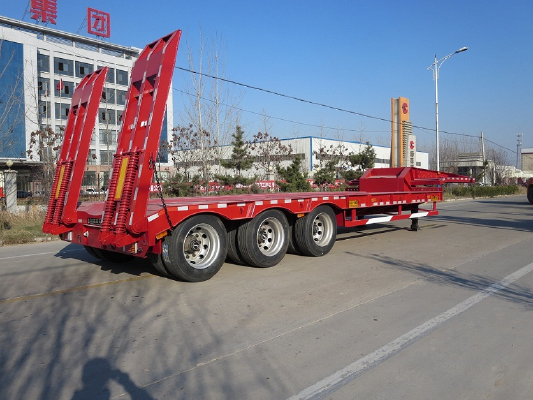

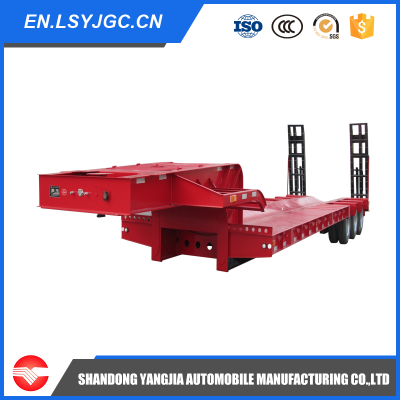

Low bed semi-trailer is usually used to transport heavy vehicles (such as tractors, buses, special vehicles, etc.), rail vehicles, mining machinery, forestry machinery, engineering machinery (such as excavators, bulldozers, loaders, pagers, cranes ) And other heavy goods, the lower the center of gravity, stability and safety of the better transport of goods and the ability to pass through the head barrier is stronger.
Parameters of low bed semi-trailer
| Dimensions | 13000mmx3000mmx3110mm |
| Main Beam | Height: 500mm, Thickness: upper plate-16mm, middle plate-8mm, lower plate-18mm |
| Side Beam | 20# H-steel |
| Axle | FUWA13T x 3 pieces |
| King Pin | JOST 2 or 3.5 inch welding or bolt-in King pin |
| Base plate | 4mm checkered plate |
| Suspension | American Mechanical Suspension |
| Leaf Spring | 9cm(Width) x13mm(Thickness) x 10 layers |
| Landing Gear | YAHUA 28T External Single Action |
| Brake Chamber | 6 double-chambers |
| Tire | ChengShan 12R22.5 x 12 pieces |
| Wheel Rim | 6.5-20 x 12 pieces |
| ABS System | With |
| Ladder | With |
| Tool Box | Factory standard x 1 piece |
| Spare Wheel Carrier | 2 pieces |
| Lamp | LED lights |
How to get competitive price,contact me pls
| Daisy fan | |
| Tel,Whatsapp | 86-15550023342 |
| Skype | yjtrailer01 |
| yjtrailer@outlook.com | |
| 86-18369685321 | |
- Size: 122
- Place of Origin: Jining city,China
- Brand Name: YangJia
- Model Number: yangjia
- Weight: 9000.000 kg
Parameters of low bed semi-trailer
| Dimensions | 13000mmx3000mmx3110mm |
| Main Beam | Height: 500mm, Thickness: upper plate-16mm, middle plate-8mm, lower plate-18mm |
| Side Beam | 20# H-steel |
| Axle | FUWA13T x 3 pieces |
| King Pin | JOST 2 or 3.5 inch welding or bolt-in King pin |
| Base plate | 4mm checkered plate |
| Suspension | American Mechanical Suspension |
| Leaf Spring | 9cm(Width) x13mm(Thickness) x 10 layers |
| Landing Gear | YAHUA 28T External Single Action |
| Brake Chamber | 6 double-chambers |
| Tire | ChengShan 12R22.5 x 12 pieces |
| Wheel Rim | 6.5-20 x 12 pieces |
| ABS System | With |
| Ladder | With |
| Tool Box | Factory standard x 1 piece |
| Spare Wheel Carrier | 2 pieces |
| Lamp | LED lights |
