- Size: 59
- Place of Origin: Jining city,China
- Brand Name: YangJia
- Model Number: yangjia
- Weight: 9000.000 kg
Application & Advantages
1.The body is made of high quality steel, advanced technology and strict production technology. The whole vehicle has reasonable structure, reliable performance, simple operation and good appearance.
2.Accessories are well-known manufacturers of products at home and abroad, and in strict accordance with the quality system requirements of the document procurement, testing, use, and ensure the good performance of the vehicle.

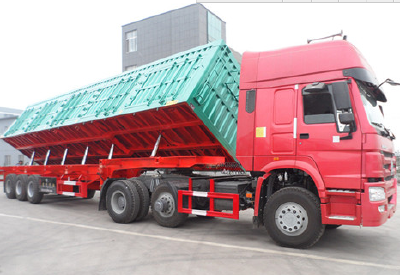

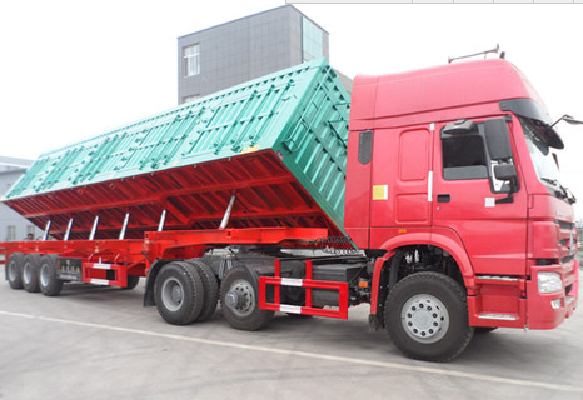

Parameters of side dump semi trailer
Tare Weight | 12T |
Load Capacity | 40T |
Dimensions | 13000x2550x1800mm |
Thickness of Cargo Box | Floor: 4mm Side:3mm |
Main Beam | upper:16mm Middle: 10mm Lower: 18mm |
Side Beam | 18mm U-steel Thickness: 6mm |
Auxiliary Beam | 100x140mm square steel |
Axle | FUWA 13ton x 3 pieces |
Hydraulic System | 50L fuel tank, HYVA brand 130/150 cylinder x 5 pieces, 140/180 displacement cylinder x 1 piece |
Leaf Spring | 10cm(W)/10mm(T)/10 layers |
King Pin | JOST2 or 3.5 inch welding or bolt-in king pin |
Braking System | 6 Double Chambers |
Tires | Triangle 12.00R20 x 12 pieces |
Wheel Rim | 9.0-20 x 12 pieces |
Lifting Angle | ≥ 45° |
Back | With side closing door |
Spare Tire | one set of spare tire including a carrier |
Painting | Complete chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
Accessories | One standard tool box |
Color | Red, White, Blue, Green, Yellow (optional). |
FAQ
1. How long production cycle of the trailer?
It usually takes 10-15 workdays.
2. Can you produce trailers as per customer's request?
Yes, we can.
3. Can you do SKD?
Yes,we can do SKD.
4. How can you ensure the trailer intact to the customer designated location?
The trailer will get wax sprayed thickly before delivery to prevent corrosion by seawater.
5. How can you ensure the quality of the products?
Please don’t worry, dear. we joined the trade assurance. If the products have quality problem when you received the goods, alibaba can give you advance payments.
6. How to guarantee customers get the goods smoothly after they pay?
Please don’t worry, dear. we joined the trade assurance. you can place the order by trade assurance,and the deposit will given to alibabba.if we don’t delivery products, the deposit will return to you.
7. Can we visit your company and have a test driving?
Of course,warmest welcome to visiting us.
We will pick you up at Jinan airport and Jinan ,Tai'an or QuFu high speed train station.
And help to book hotel for you.
