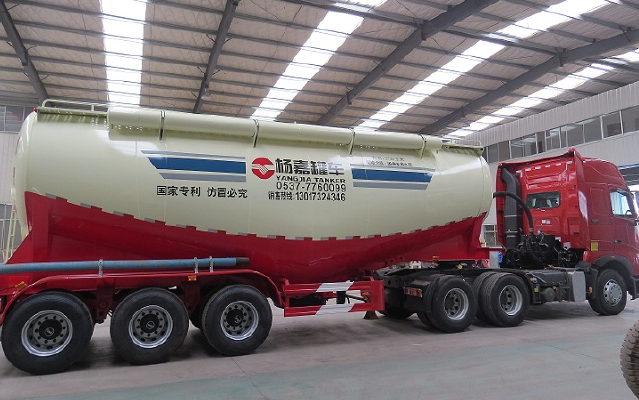

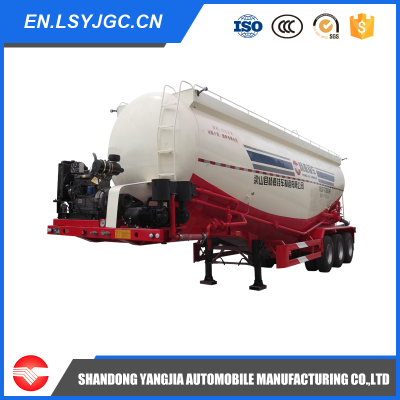

3 axles bulk cement semi trailer for power material transport

3 axles bulk cement semi trailer for power material transport

  • Min.Order Quantity: 1 Set
  • Supply Ability: 180 Sets per Month
  • Port: Qingdao Port
  • Payment Terms: L/C,T/T,Other
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:1997-06-16
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  40
  • Place of Origin:  Shandong liangshan
  • Brand Name:  YangJia
  • Model Number:  LHL9400GXH
  • Weight: 9000.000 kg

Company profile

Shandong Yangjia Automobile Manufacturing Co , Ltd, has approved as an appointed trailer manufacturing enterprise by the ministry of industry and information technology of the people's republic of China, and also one of the first batch of private enterprises entering the national announcement management. The company has got the lS09001:2000 quality management system certification and the 3C China Compulsory Product Quality Certification.Main products: Low bed semi trailer, container flatbed transport semi trailer, cargo trailer,dump semi trailer,tanker semi trailer, special semi trailer.

Application & Advantages

1.Bulk Cement Semi Trailer is a special vehicle for bulk material transportation.
2.Applicable to fly ash, cement, lime powder, ore powder and other particle diameter of not more than 0.1mm powder dry material transport and pneumatic discharge。
3.Using the domestic advanced production technology, innovative design, durable. Air bag bearing capacity, unloading speed fast residue small. One synthetic tank with the overall high strength, good rigidity, good pressure, the use of good performance and so on.
4.The design of fluidized bed in the tank is scientific and reasonable. It can effectively shorten the discharge time, improve the capacity utilization of the tank, reduce the residual ash rate, 0.2%. Double-tube feeding and double-cylinder feeding are adopted. The discharging speed and residual rate of the powdery material transporters are in line with the industry standard.


  • Size:  40
  • Place of Origin:  Shandong liangshan
  • Brand Name:  YangJia
  • Model Number:  LHL9400GXH
  • Weight: 9000.000 kg

Parameters of bulk cement semi trailer

                                                                  Tank Body

Shape: Optional ( One Silo with V type)

Dimensions: 10500mmx2500mmx3980mm

Total Volume: 40 m³

Tanker Body Material: 4mm/ Q235B carbon steel

End Plate: 5mm /Q235B carbon steel

Manhole Cover: 2 or 3 pieces

Diesel Engine: WEICHAI 4100/4102/4105

Air Compressor: WUHU 12 m³ double-cylinder

Air Chamber: 6 double-chambers

Storage Battery: 12V x 2 pieces

Discharging Pipe: 6m x 1 piece

Discharging Valve:1 pieces

Discharging Time:26 minutes

Cat Ladder: with

                                                                     Chassis

Main Beam:Height:500mm Thickness:upper plate:14mm,middle plate: 8mm,bottom plate:16mm

Axle: FUWA13T x 3 pieces

King Pin:2 or 3.5 inch welding or bolt-in king pin

Suspension: American Mechanical Suspension

Leaf Spring:9cm(width) x13mm(thickness)x10 layers

Landing Gear:YAHUA 28T External Single Action

Tire: Chengshan 12R22.5 x 12 pieces

Tool Box: Factory standard x 1 piece

Spare Wheel Carrier: 2 pieces

Lamp: LED lights
