Model Number

LHL9400GFL/LHL9401GFL/LHL9402GFL/LHL9403GFL/LHL9404GFL/LHL9402

Product type

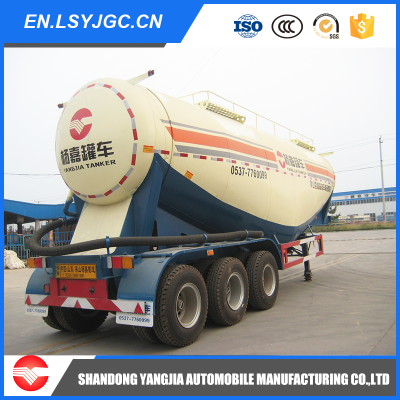

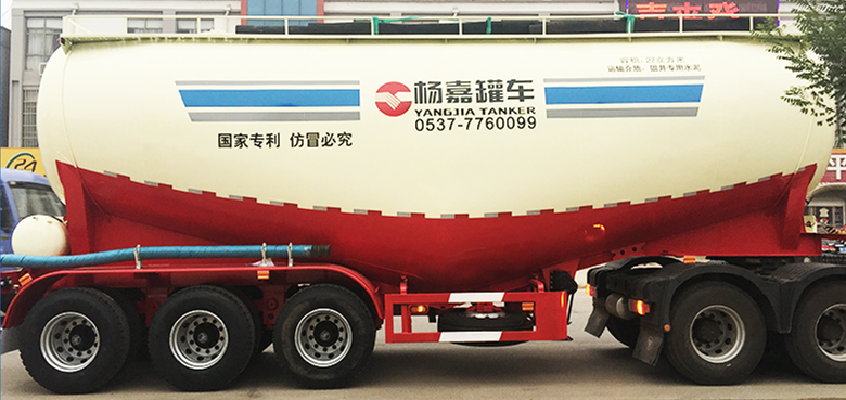

Bulk Cement Semi Trailer

Overall Length

9500mm-13500mm

Overall Wide

2500mm

Overall Height

3800mm-3990mm

Tare Weight

About 7500KGS-15000KGS

Total Volume

27m³-85m³

Tanker Body

Shape

Optional (One Silo with V type or two,three Silo Design)

Tanker Body

4mm or 5mm or 6mm/Q235B carbon steel

End Plate

5mm or 6mm/Q235B carbon steel

Manhole Cover

2 or 3 pieces, Carbon steel diameter 500mm

Discharging Pipe

3 or 4 inch rubber hose,1 pcs,6m/each

Discharging Valve

Diameter is 3 or 4 inch

Rated work Pressure

0.2MPa

Diesel Engine

WEICHAI 4100/4102/4105

Air Compressor

WUHU 12 m³ /14m³double-cylinder

Cat Walk

With (common or special design)

Chassis

Axle

2 or 3 axles,13T/16T,YANGJIA/FUWA/BPW Brand

Main Beam

T700 carbon steel ,Welding Design

King pin

2 or 3.5 inch welding or bolt-in King pin,JOST brand/China brand

Suspension

Mechanical suspension (Germany Type or America Type)

Or Air suspension (China brand or BPW brand )

Leaf Spring

90mm(Width) x13mm(Thickness) x 10 layers,optional

Support Leg

28T External Single Action,FUWA/JOST brand

Brake Chamber

WABCO RE 6 relay valve;T30/30 T30 Spring brake chamber (TKL brand);Two pieces of 45L air tanks Or China brand

Tire

8.25R20/10.00R20/11.00R20/12.00R20,Chengshan/Shuangqian/Linglong/Triangle Brand

Wheel Rim

9.00-22.5/7.5-20/8.00-20/8.5-20

ABS system

Optional

Electrical system

24V, 7 wire harness

Light

LED light (Special for export market)

Painting

Complete chassis san blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint,Color as customer choice

Tool Box

One standard tool box

Shipping Terms

By Bulk Cargo , RORO or 40HQ Containers
