Model Number

LHL9400TJZ/LHL9401TJZ/LHL9402TJZ/LHL9403TJZ/LHL9404TJZ

Product type

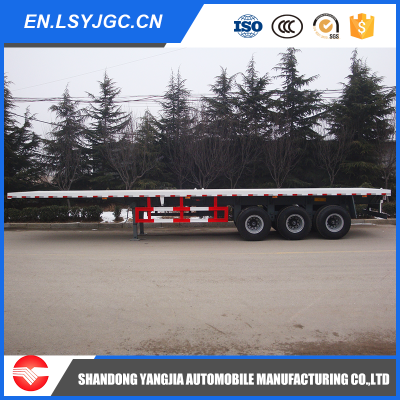

Container Transport Trailer

Tare weight

About 6.2T

Dimension

12500mm*2500*1500mm

Loading capacity

30T-45T

Main beam

Height:500mm,Thickness:upper plate-14mm, middle plate-8mm, lower plate-16mm

Material is T700 Steel

Side beam

16mm channel steel (Material is Q345 steel)

Base plate

3mm checkered plate or optional

Axle

13T/16T,YANGJIA/FUWA/BPW Brand

King pin

2 or 3.5 inch welding or bolt-in King pin,JOST brand/China brand

Suspension

Mechanical suspension (Germany Type or America Type)

Or Air suspension (China brand or BPW brand )

Leaf Spring

90mm(Width) x13mm(Thickness) x 10 layers,optional

Landing Gear

28T External Single Action,FUWA/JOST brand

Brake Chamber

WABCO RE 6 relay valve;T30/30 T30 Spring brake chamber (TKL brand);Two pieces of 45L air tanks Or China brand

Tire

8.25R16/8.25R20/12R22.5/11.00R20/12.00R20,Chengshan/Shuangqian/Linglong/Triangle Brand

Wheel Rim

9.00-22.5/7.5-20/8.00-20/8.5-20

ABS system

Optional

Electrical system

24V, 7 wire harness

Twist Locks

Four,Eight or Twelve pieces (Lifting type or Twist screw type)

Tool Box

One piece,1mxo.5mx0.5m(Size can be choose freely)(equipped with 1 unit Tire spanner, 1 unit gudgeon sleeve and 1 unit cranking bar)

Spare Wheel Carrier

2 pieces or according to the requirements of the buyer

Lamp

LED light (especial for exporting market)

Painting

Complete chassis san blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint,Color as customer choice

Chassis name

Container truck chassis
