Product Details
- Size: 132
- Place of Origin: Jining city,China
- Brand Name: YangJia
- Model Number: yangjia
- Weight: 9000.000 kg
Application & Advantages

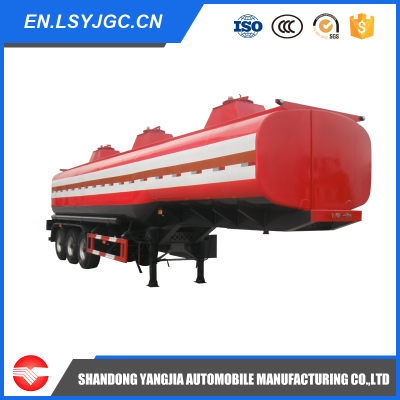

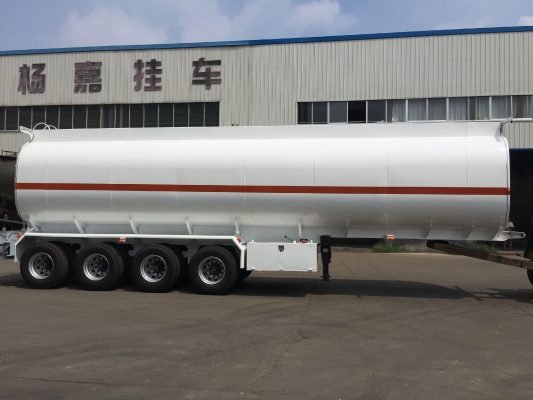

1.Fuel Tank Semi Trailer is mainly used for the transportation and storage of petroleum derivatives (petrol, diesel, crude oil, lubricating oil and coal tar oil). Depending on the use and use of a variety of fuel or oil, the fuel truck is like a mobile gas station, anytime, anywhere to the required vehicle fuel. With oil absorption, pump oil, a variety of oil sub-loaded, sub-release and other functions.
2.Fuel Tank semi-trailer usually have: two axle semi-trailer and three axle semi-trailer.
Parameters of Fuel Tank Semi Trailer
| Tank body | |
| Manufacturer | Shandong Yangjia Automobile Manufacturing Co.,Ltd |
| Model Number | LHL9405GYYA/LHL9406GYYA/LHL9407GYYA/LHL9408GYYA |
| Shape | Round or Suare (Optional) |
| Dimension | 9500-13500*2500*3900 (Exact size depends on the final design) |
| Tare Weight | About 8000KGS-12800KGS |
| Loading Capacity | 32,000-60,000 liters |
| The tank body material | 5mm, 6mm or 7mm Q235 Carbon steel plate/Aluminium Alloy 5083/Stainless Steel |
| The foreside and back side head | 6mm or 7mm Q235 Carbon steel plate/Aluminium Alloy 5083/Stainless Steel |
| Wave plate | 4mm Stainless Steel |
| Manhole Cover | 2 or 3 or 4 pieces ,Stainless steel manhole,diameter 500mm |
| Bottom Valve | Stainless Steel Bottom Valve |
| Discharging Pipe | 2 pieces Rubber tube , 6m/each |
| Discharging Valve | Diameter is 3 or 4 inch |
| Compartments | Optional |
| Chassis | |
| Main Beam | Steel Q345 or Aluminium Alloy |
| Axle | 2 or 3 axles,13T/16T,YANGJIA/FUWA/BPW Brand |
| King pin | 2 or 3.5 inch welding or bolt-in King pin,JOST brand/China brand |
| Suspension | Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW brand ) |
| Leaf Spring | 90mm(Width) x13mm(Thickness) x 10 layers,optional |
| Landing Gear | 28T External Single Action,YAHUA/JOST brand |
| Brake Chamber | WABCO RE 6 relay valve;T30/30 T30 Spring brake chamber (TKL brand);Two pieces of 45L air tanks Or China brand |
| Tire | 8.25R16/8.25R20/12R22.5/11.00R20/12.00R20,Chengshan/Shuangqian/Linglong/Triangle Brand |
| Wheel Rim | 9.00-22.5/7.5-20/8.00-20/8.5-20 |
| ABS system | Optional |
| Fire | Two pieces 4 KG |
| Spare Tire Carrier | 2 pieces |
| Daisy fan | |
| Tel,Whats app | 86-15550023342 |
| Skype | yjtrailer01 |
| yjtrailer@outlook.com | |
| 86-18369685321 | |
- Size: 132
- Place of Origin: Jining city,China
- Brand Name: YangJia
- Model Number: yangjia
- Weight: 9000.000 kg
| Tank body | |
| Manufacturer | Shandong Yangjia Automobile Manufacturing Co.,Ltd |
| Model Number | LHL9405GYYA/LHL9406GYYA/LHL9407GYYA/LHL9408GYYA |
| Shape | Round or Suare (Optional) |
| Dimension | 9500-13500*2500*3900 (Exact size depends on the final design) |
| Tare Weight | About 8000KGS-12800KGS |
| Loading Capacity | 32,000-60,000 liters |
| The tank body material | 5mm, 6mm or 7mm Q235 Carbon steel plate/Aluminium Alloy 5083/Stainless Steel |
| The foreside and back side head | 6mm or 7mm Q235 Carbon steel plate/Aluminium Alloy 5083/Stainless Steel |
| Wave plate | 4mm Stainless Steel |
| Manhole Cover | 2 or 3 or 4 pieces ,Stainless steel manhole,diameter 500mm |
| Bottom Valve | Stainless Steel Bottom Valve |
| Discharging Pipe | 2 pieces Rubber tube , 6m/each |
| Discharging Valve | Diameter is 3 or 4 inch |
| Compartments | Optional |
| Chassis | |
| Main Beam | Steel Q345 or Aluminium Alloy |
| Axle | 2 or 3 axles,13T/16T,YANGJIA/FUWA/BPW Brand |
| King pin | 2 or 3.5 inch welding or bolt-in King pin,JOST brand/China brand |
| Suspension | Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW brand ) |
| Leaf Spring | 90mm(Width) x13mm(Thickness) x 10 layers,optional |
| Landing Gear | 28T External Single Action,YAHUA/JOST brand |
| Brake Chamber | WABCO RE 6 relay valve;T30/30 T30 Spring brake chamber (TKL brand);Two pieces of 45L air tanks Or China brand |
| Tire | 8.25R16/8.25R20/12R22.5/11.00R20/12.00R20,Chengshan/Shuangqian/Linglong/Triangle Brand |
| Wheel Rim | 9.00-22.5/7.5-20/8.00-20/8.5-20 |
| ABS system | Optional |
| Fire | Two pieces 4 KG |
| Spare Tire Carrier | 2 pieces |
