Model Number

LHL9400B/LHL9401B/LHL9402B/LHL9403B/LHL9404B

Product type

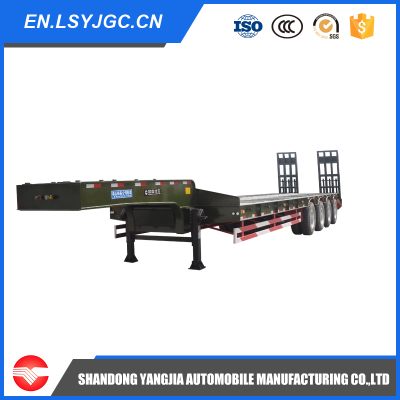

Low bed Semi Trailer

Tare weight

About 8.5T-13T

Dimension

12000mm-18000mm*2500mm-3500mm*3110mm

Please indicate the working platform height and length.

Loading capacity

40T-100T

Main beam

Height:450mm-520mm,Thickness: upper plate is 14mm-25mm,middle plate is 8mm-12mm,lower plate is 16mm-25mm,Material is T700 Steel

Side beam

16mm-25mm channel steel (Material is Q345 steel)

Base plate

4mm checkered plate or optional

Ladder

Manual type or Hydraulic type

Gooseneck

For choose

Axle

13T/16T,YANGJIA/FUWA/BPW Brand

King pin

2 or 3.5 inch welding or bolt-in King pin,JOST brand/China brand

Suspension

Mechanical suspension (Germany Type or America Type)

Or Air suspension (China brand or BPW brand )

Leaf Spring

90mm(Width) x13mm(Thickness) x 10 layers,optional

Landing Gear

28T External Single Action,YAHUA/JOST brand

Brake Chamber

WABCO RE 6 relay valve;T30/30 T30 Spring brake chamber (TKL brand);Two pieces of 45L air tanks Or China brand

Tire

8.25R16/8.25R20/12R22.5/11.00R20/12.00R20,Chengshan/Shuangqian/Linglong/Triangle Brand

Wheel Rim

9.00-22.5/7.5-20/8.00-20/8.5-20

ABS system

Optional

Electrical system

24V, 7 wire harness

Tool Box

One piece,1mxo.5mx0.5m(Size can be choose freely)(equipped with 1 unit Tire spanner, 1 unit gudgeon sleeve and 1 unit cranking bar)

Spare Wheel Carrier

2 pieces or according to the requirements of the buyer

Lamp

LED light (especial for exporting market)

Painting

Complete chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint,Color as customer choice

Chassis name

Low Bed Truck Chassis

Shipping Terms

By bulk cargo carrier, RORO or 40HQ container
