- Size: 8500mm-13000mmx2500mmx2860mm-2900mm
- Place of Origin: China Mainland
- Brand Name: YangJia
- Model Number: LXL9407LM
- Weight: 7000.000 kg

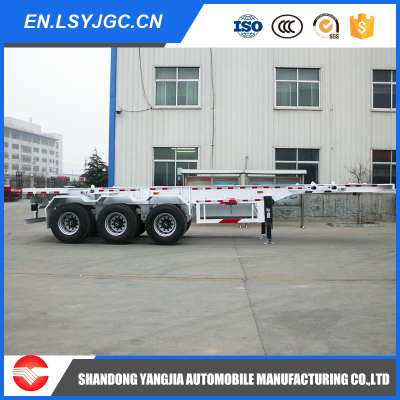

Cargo Semi Trailer
Manufacturer | Shandong Yangjia Automobile Manufacturing Co.,Ltd |
Model Number | LHL9400/LHL9401/LHL9402/LHL9403/LHL9404 |
Product type | Cargo Semi Trailer |
Tare weight | 6.5T-7.2T |
Dimension | Length:8500mm-13000mm,Width:2500,Height:2860mm-2900mm |
Wheelbase | 6560mm 1310mm 1310mm |
Loading capacity | 30T-60T |
Main beam | Height:500mm,Thickness:upper plate-14mm, middle plate-8mm, lower plate-16mm Material is T700 Steel |
Side beam | 16mm or 18mm channel steel (Material is Q345 steel) |
Base plate | 3mm checkered plate or optional |
Side Wall Plate | 600-1500mm height,or can be do box type, for choose |
Axle | 13T/16T,YANGJIA/FUWA/BPW Brand |
King pin | 2 or 3.5 inch welding or bolt-in King pin,JOST brand/China brand |
Suspension | Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW brand ) |
Leaf Spring | 90mm(Width) x13mm(Thickness) x 10 layers,optional |
Support Leg | 28T External Single Action,FUWA/JOST brand |
Brake Chamber | WABCO RE 6 relay valve;T30/30 T30 Spring brake chamber (TKL brand);Two pieces of 45L air tanks Or China brand |
Tire | 8.25R20/10.00R20/11.00R20/12.00R20,Chengshan/Shuangqian/Linglong/Triangle Brand |
Wheel Rim | 6.5-20/7.5-20/8.00-20/8.5-20 |
ABS system | Optional |
Electrical system | 24V, 7 wire harness |
Tool Box | One piece or according to the requirements of the buyer |
Spare Wheel Carrier | 2 pieces or according to the requirements of the buyer |
Lamp | LED light (especial for exporting market) |
Painting | Complete chassis san blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint,Color as customer choice |
Chassis name | Cargo truck chassis |
MORE INFO NEEDED? CONTACT US, WE’RE AT YOUR SERVICE!
Shandong Yangjia Automobile Manufacturing Co.,Ltd.
Add:Liangshan County Quanpu Town Industrial Park
Mob: 86-15587345360
Email:yjgc16Alex@gmail.com trailer2008@163.com
Skype/WhatsApp/Viber/imo: 86-15587345360
Wechat:mjk374537262
