- Size: 13500*2500*3900
- Place of Origin: China Mainland
- Brand Name: YangJia
- Model Number: LHL9006GYYA
- Weight: 10000.000 kg
About Our Configuratio

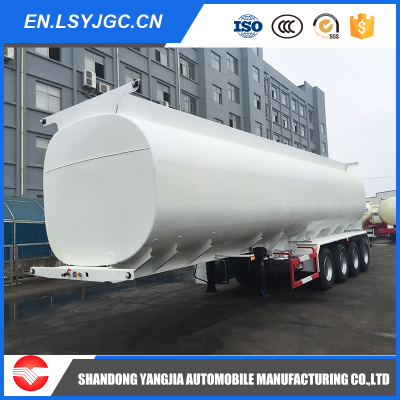

Fuel Tanker Semi Trailer
Tank body | |
Manufacturer | Shandong Yangjia Automobile Manufacturing Co.,Ltd |
Model Number | LHL9400GYY/LHL9401GYY/LHL9402GYY/LHL9403GYY/LHL9404GYY |
Shape | Round or Suare (Optional) |
Dimension | 9500-13500*2500*3900 (Exact size depends on the final design) |
Tare Weight | About 8000KGS-12800KGS |
Loading Capacity | 32,000-60,000 liters |
The tank body material | 5mm, 6mm or 7mm Q235 Carbon steel plate/Aluminium Alloy 5083/Stainless Steel |
The foreside and back side head | 6mm or 7mm Q235 Carbon steel plate/Aluminium Alloy 5083/Stainless Steel |
Wave plate | 4mm Stainless Steel |
Manhole Cover | 2 or 3 or 4 pieces ,Stainless steel manhole,diameter 500mm |
Bottom Valve | Stainless Steel Bottom Valve |
Discharging Pipe | 2 pieces Rubber tube , 6m/each |
Discharging Valve | Diameter is 3 or 4 inch |
Compartments | Optional |
Chassis | |
Main Beam | Steel Q345 or Aluminium Alloy |
Axle | 2 or 3 axles,13T/16T,YANGJIA/FUWA/BPW Brand |
King pin | 2 or 3.5 inch welding or bolt-in King pin,JOST brand/China brand |
Suspension | Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW brand ) |
Leaf Spring | 90mm(Width) x13mm(Thickness) x 10 layers,optional |
Landing Gear | 28T External Single Action,FUWA/JOST brand |
Brake Chamber | WABCO RE 6 relay valve;T30/30 T30 Spring brake chamber (TKL brand);Two pieces of 45L air tanks Or China brand |
Tire | 8.25R16/8.25R20/12R22.5/11.00R20/12.00R20,Chengshan/Shuangqian/Linglong/Triangle Brand |
Wheel Rim | 9.00-22.5/7.5-20/8.00-20/8.5-20 |
ABS system | Optional |
Fire | Two pieces 4 KG |
Spare Tire Carrier | 2 pieces |
Side,rear safty guard | With |
MORE INFO NEEDED? CONTACT US, WE’RE AT YOUR SERVICE!
Company name:Shandong Yangjia Automobile Manufacturing Co.,Ltd.
Add:Liangshan County Quanpu Town Industrial Park
Mob: 86-15587345360
Skype/WhatsApp/Viber/imo: 86-15587345360
Email:yjgc16Alex@gmail.com trailer2008@163.com
