Model Number

LHL9400ZZX/LHL9401ZZX/LHL9402ZZX/LHL9403ZZX/LHL9404ZZX

Product type

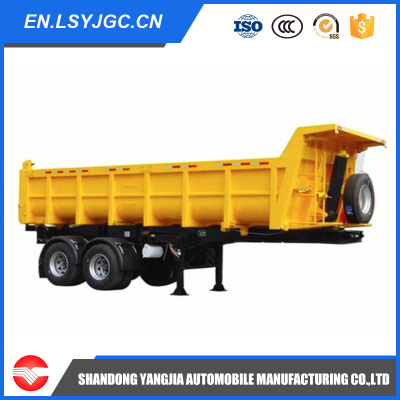

Dump Semi Trailer

Tare Weight

About 15600KGS

Main Dimension

Dimension

11280*2500*3972(outside)     10330*2330*1700mm(work place)

Total Volume

37m³ or less than 120tons

Side wall thickness

2mm-8mm Q345 Steel

Bottom plate thickness

3mm-10mm Q345 Steel

Lifting system

Full set of Hyva (Fc214-5-07130) Hydraulic Lifting Cylinder

Chassis

Main beam

Height:500mm,Thickness: upper plate-16mm,middle plate-8mm,lower plate is 16mm-25mm,Material is T700 Steel

Axle

13T/16T,YANGJIA/FUWA/BPW Brand

King pin

2 or 3.5 inch welding or bolt-in King pin,JOST brand/China brand

Suspension

Mechanical suspension (Germany Type or America Type)

Or Air suspension (China brand or BPW brand )

Leaf Spring

90mm(Width) x13mm(Thickness) x 10 layers,optional

Landing Gear

28T External Single Action,FUWA/JOST brand

Brake Chamber

WABCO RE 6 relay valve;T30/30 T30 Spring brake chamber (TKL brand);Two pieces of 45L air tanks Or China brand

Tire

8.25R16/8.25R20/12R22.5/11.00R20/12.00R20,Chengshan/Shuangqian/Linglong/Triangle Brand

Wheel Rim

9.00-22.5/7.5-20/8.00-20/8.5-20

ABS system

Optional

Electrical system

24V, 7 wire harness

Light

LED light (Special for export market)

Painting

Complete chassis san blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint,Color as customer choice

Tool Box

One standard tool box

Shipping Terms

By Bulk Cargo or RORO,the trailer size can be design according to your special requirements,the tractor truck can be choose 6*4 model
