- Place of Origin: Shandong
- Brand Name: YangJia
- Model Number: Semi-Trailer

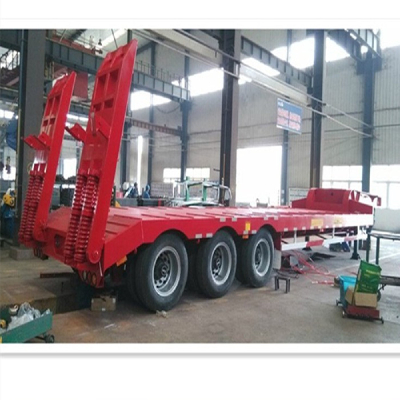

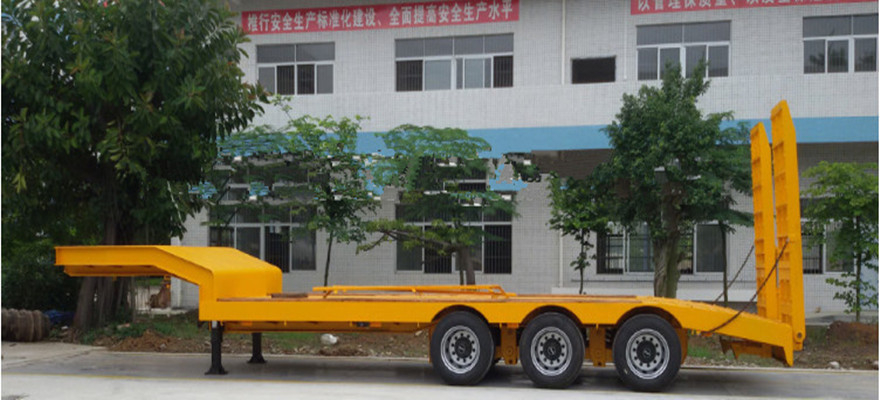

low bed Truck Trailer
- Place of Origin: Shandong
- Brand Name: YangJia
- Model Number: Semi-Trailer
Parameter
Trailer Model | 3 Axle Low bed Semi Trailer |
Dimension(Lx W x H)(mm) | 13000*3000*3550 |
Curb Weight(KG) | 10000 |
Loading Weight( KG) | 60000 |
Total Wheight(KG) | 47000 |
Departure Angle | 16 |
Axle Brand | FUWA 13TON Axle |
Axle Number | 3 |
Wheelbase(mm) | 8580 1310 1310 |
Suspension system | Mechanical suspension |
Steel Spring | 10/10/10 |
Frame | The height of the beam is500mm,upper plate is 18mm, down plate is 20mm,middle plate is 10mm. according to the buyer’s requirement |
Platform plate | 4mm Diamond Plate |
Tire Type and quantity | 295/80R22.5 12units |
Traction Pin | 50mm or 90mm |
Spare Wheel Bracket | 2 picecs |
Tool Box | 1 Unit |
Landing Leg | 28T load landing leg |
Brake system | Dual Line braking system ,none ABS. |
Brake air chamber | 6 air chambers |
Electrical system | 24V,7 Pole plug |
Tail lamp with turn signal, brake light & reflector, side lamp etc. | |
One set 6-core standard Cable. | |
Side Guard | None |
Painting | Color by customer’s requirement |
Packing | Polish with wax before shipping |
Delivery way | Transfer to China port, and carry by ro-ro ship, the freight cost depends on the volume. |
